Description

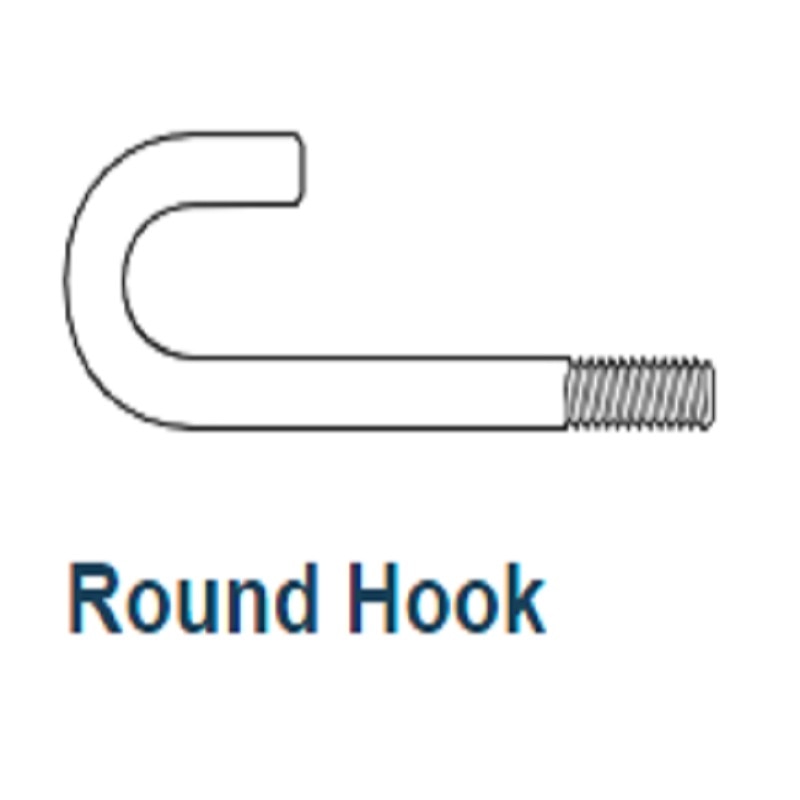

J-Type foundation bolts are heavy-duty anchors used in concrete foundations to secure structural steel elements. They have a J-shaped hook on one end and a threaded rod on the other end. The J-hook is embedded into the concrete and the threaded rod is attached to the structural steel. J-Type bolts come in various sizes and lengths and are made of high-strength materials such as carbon steel or stainless steel to provide a secure and stable connection. They are commonly used in construction, bridge building, and other industrial applications.
J-Type foundation bolts are commonly used in the following applications:
Construction: To secure steel beams, columns, and other structural elements in concrete foundations for buildings, bridges, and other structures.
Mining: To secure heavy machinery and equipment in underground mines.
Oil and Gas: To anchor drilling rig platforms, pipelines, and other equipment in offshore and onshore locations.
Manufacturing: To secure heavy machinery, conveyors, and other equipment in industrial plants.
Transportation: To secure bridge decks, highway barriers, and other infrastructure components.
The J-Type bolts offer high-strength and stability, making them suitable for applications where safety and reliability are crucial. They are also relatively easy to install and maintain.
J-Type foundation bolts come in various dimensions, including:
Length: Ranges from 6 inches to 72 inches.
Diameter: Ranges from 1/2 inch to 4 inches.
Thread size: Ranges from 1/2 inch to 4 inches.
Material: Carbon steel, stainless steel, and other high-strength materials.
Finish: Galvanized, black oxide, and other finishes for protection against corrosion.
The dimensions of the J-Type foundation bolts are determined by the specific application and the load requirements. It is important to select the appropriate length, diameter, thread size, material, and finish for the intended use to ensure a secure and stable connection.
J-Type foundation bolts can have various coatings for protection against corrosion, including:
Galvanized: Zinc coating that provides good protection against rust and corrosion.
Black Oxide: A black, corrosion-resistant coating that is ideal for indoor applications.
Hot-Dip Galvanized: A zinc coating that is melted onto the surface of the bolt for improved protection against corrosion.
Stainless Steel: A corrosion-resistant material that provides a sleek appearance and long-lasting protection.
Powder Coating: A decorative and protective finish applied as a dry powder, which is then cured to a hard, protective finish.
The choice of coating depends on the specific application and environmental conditions, with some coatings providing better protection against corrosion in harsh or outdoor environments. It is important to select the appropriate coating to ensure a secure and stable connection, while also protecting against rust and corrosion over time.
J-Type foundation bolts are manufactured to specific standards and specifications to ensure quality, safety, and reliability. Some of the specifications that may apply include:
ASTM A307: A standard specification for carbon steel bolts, studs, and threaded rods.
ASTM A325: A standard specification for heavy hex structural bolts.
ASTM A490: A standard specification for alloy steel bolts and studs.
ASTM F1554: A standard specification for anchor bolts designed to anchor structural supports to concrete foundations.
SAE J429: A standard specification for grade 5 and grade 8 bolts.
These specifications set the minimum standards for material composition, strength, dimensional tolerance, and other properties of J-Type foundation bolts. It is important to ensure that the bolts meet the appropriate specifications for the intended application to ensure safety and reliability.
In India, J-Type foundation bolts are manufactured to the following standards:
IS 3757: Specification for high-strength structural bolts with large hexagonal heads.
IS 1367-3: Specification for technical supply conditions for threaded steel fasteners, part 3: bolts, screws, studs and nuts with specified property classes—coarse thread.
IS 1367-6: Specification for technical supply conditions for threaded steel fasteners, part 6: set screws and similar threaded fasteners not under tensile stresses.
IS 1367-7: Specification for technical supply conditions for threaded steel fasteners, part 7: taps, dies and gauges.
IS 1363-1: Specification for hexagon head bolts, screws and nuts, part 1: products of property classes 8.8 and 10.9.
These Indian standards set the minimum standards for material composition, strength, dimensional tolerance, and other properties of J-Type foundation bolts in India. It is important to ensure that the bolts meet the appropriate Indian standards for the intended application to ensure safety and reliability.
J-Type foundation bolts are typically manufactured through the following process:
Steel rod: High-strength steel rods are sourced and cut to the desired length.
Forging: The steel rods are then subjected to forging, which involves heating and shaping the rods into the J-shape hook.
Threading: The threaded end of the rod is created through a threading process, which involves cutting threads onto the rod.
Heat Treatment: The bolts are then subjected to heat treatment to improve their strength and durability.
Coating: The bolts are then coated with the desired finish, such as galvanized, black oxide, or stainless steel, for protection against corrosion.
Inspection: The bolts are then inspected to ensure that they meet the desired specifications, such as dimensional tolerance and strength.
Packaging: The bolts are then packaged and ready for shipment.
The manufacturing process of J-Type foundation bolts requires skilled workers, specialized equipment, and a controlled environment to ensure quality, safety, and reliability. The bolts must meet strict standards to ensure that they are suitable for their intended applications.
J-Type foundation bolts are typically tested to ensure that they meet the desired specifications and standards, including strength, dimensional accuracy, and resistance to corrosion. Some common tests include:
Tensile Testing: To measure the strength and resistance of the bolts under tension.
Hardness Testing: To measure the hardness of the material, which is a measure of its resistance to wear and deformation.
Dimensional Accuracy Testing: To verify that the bolts meet the desired specifications for length, diameter, thread size, and other dimensions.
Corrosion Testing: To test the resistance of the bolts to corrosion and rust, including salt spray tests and humidity tests.
Fatigue Testing: To test the resistance of the bolts to repeated loading, which is important in applications where the bolts are subjected to frequent or cyclic loads.
These tests are performed in a controlled laboratory environment and are subject to strict quality control procedures to ensure accuracy and reliability. The results of the tests are used to verify that the bolts meet the desired standards and specifications, and to identify any areas for improvement in the manufacturing process.
